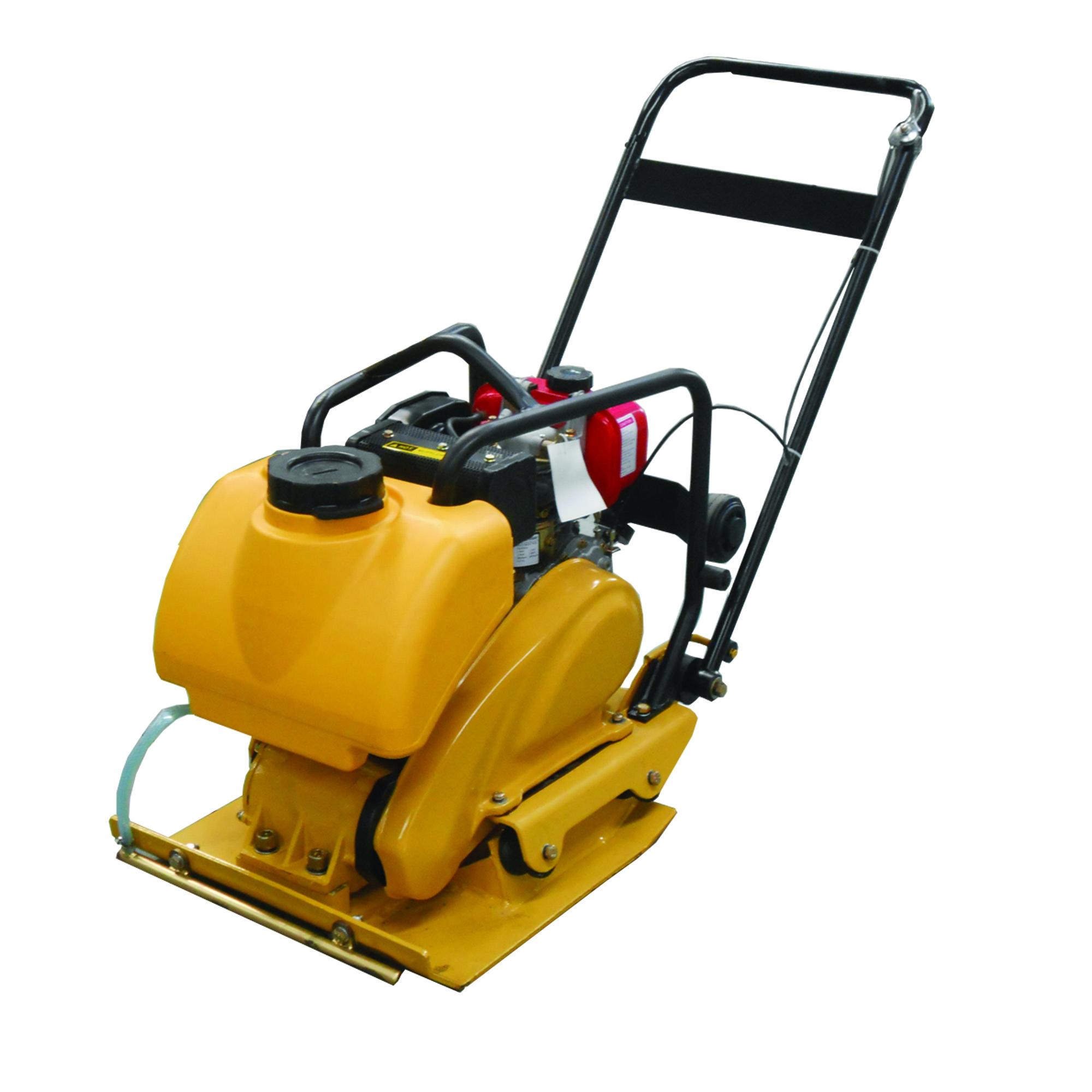

HZR100C振动平板夯主要技术参数

HZR100C Vibatory Plate Compactor Technical Parameter



项目/型号 Item/Model	HZR100C
发动机型号 Engine Model	锡普173FB
发动机功率 Engine Power	4.0hp
发动机转速 Engine Rotating Speed	3600r/min
前进速度 Forward Speed	15-20m/min
爬坡角度 Climbing Angle	≤20°
振动频率 Vibration Freqency	4500vpm
夯实力 Dynamic Compaction	1.6 T（15KN）
夯板面积 Plate Area	0.17㎡
外形尺寸 Dimensions	1180×420×980mm
包装尺寸（木箱出口型） Package Size(wooden box for export)
整机质量 The Whole Weight	97±3Kg






HZR100C 振动平板夯通过振动器振动，来压实地面使地面平整。如整平土壤和沙滩，完成沥青摊铺。具体应用范围如下：深沟压实、土木工程、道路维护、景观美化、路面铺石、车道浇注等。禁止在水多的路面上工作（特别是粘土），它不适合此类路面。HZR60、HZR100振动平板夯夯实力低，振动频率高，它主要是用于压实相对平整的路面，并不适用需要夯实力非常大的工作环境。主要用途在于压实表面的土壤，沉积物，沙滩和沥青，不建议使用于其他用途。

HZR100 C  Vibatory Plate Compactor compact the ground and make it flat through vibrating of the vibrator. The detail specification is as fllows:deep compaction, civil engineering, road maintenance, landscaping, road paving stone, lane pouring.It is forbidden to work on the way with much water (especially on the clay), because it is not suitable for this kind of working way. Its compact strength is low, vibrating frequency is high, it is mainly used for the compaction of relatively flat pavement, but not the environment that need dynamic compaction strength. The main using purpose is to compact the surface of the soil, sediment, sand and asphalt, not recommended for other uses.
