NCWG6-12型全自动钢筋调直弯箍机主要技术参数

NCWG6-12 Automatic Reinforcing Bar Straightening and Hoop Bending Machine Technical Parameter



项目/型号Item/Model		NCWC6-12
整机功率/The Total Power		20kw
电源要求/Power Supply		三相五线制 Three-phase five wires
额定电压/Rated Voltage		380V
额定频率/Rated Frequency		50Hz
可以加工圆钢和螺纹钢 Process Round and Threaded Reinforcing Bar		可以加工三级螺纹钢 Gradeon lll Threaded Bar
调直范围 Straightening Range		最大可加工φ12mm的三级螺纹钢 Maximnm φ12mm Gradeon lll Threaded Bar
加工套子最小尺寸/Minimum Processing Sleeve Size		140×140mm
最大尺寸/Maximnm Processing Sleeve Size		800×800mm
速度/Speed	800×800mm	每分钟可加工8.5个套子 8.5 pieces of 800×800mm sleeves per minute
	200×200mm	每分钟可加工10个套子 10 pieces of 200×200mm sleeves per minute
外形尺寸/Dimensions
整机重量/The Whole Weight		2800kg

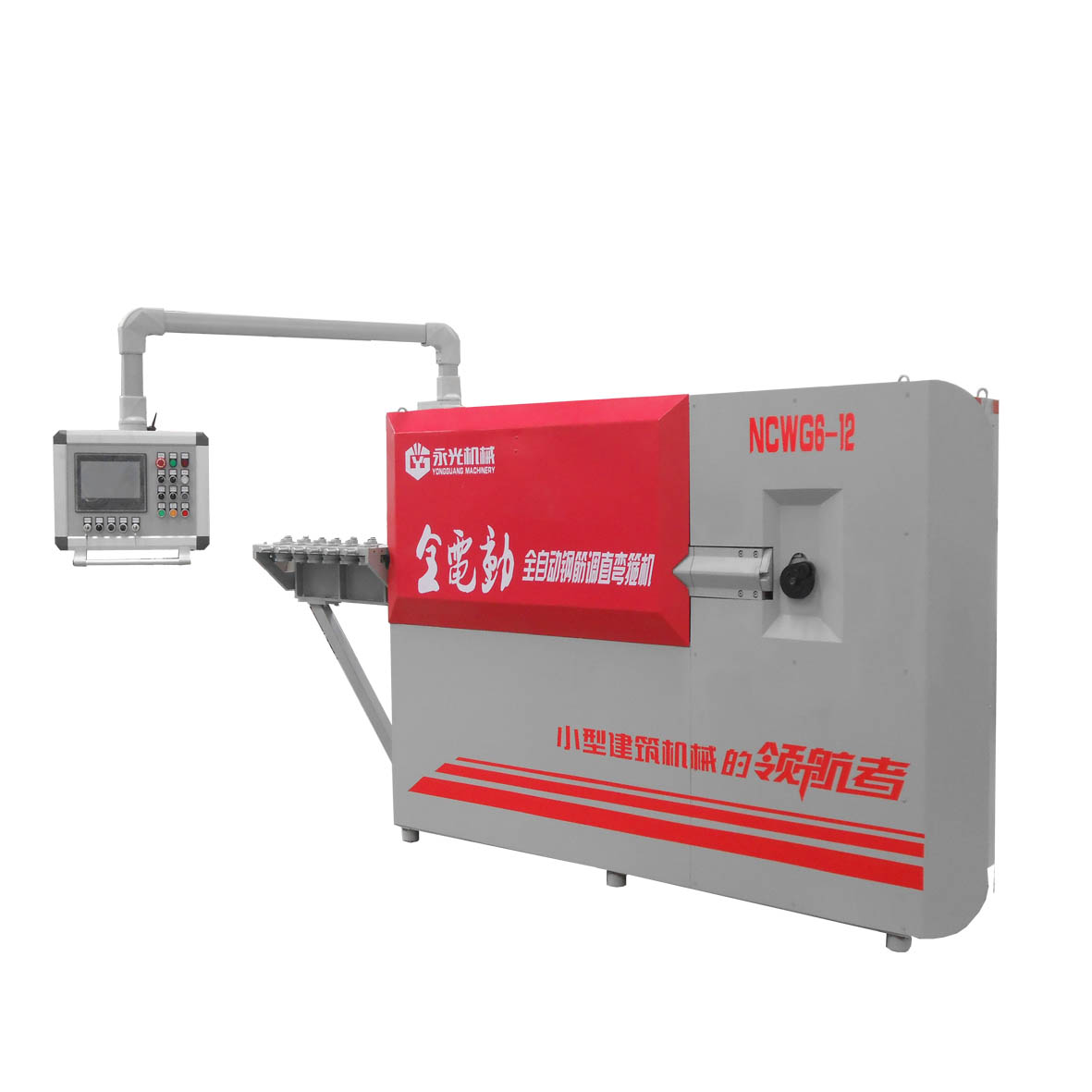

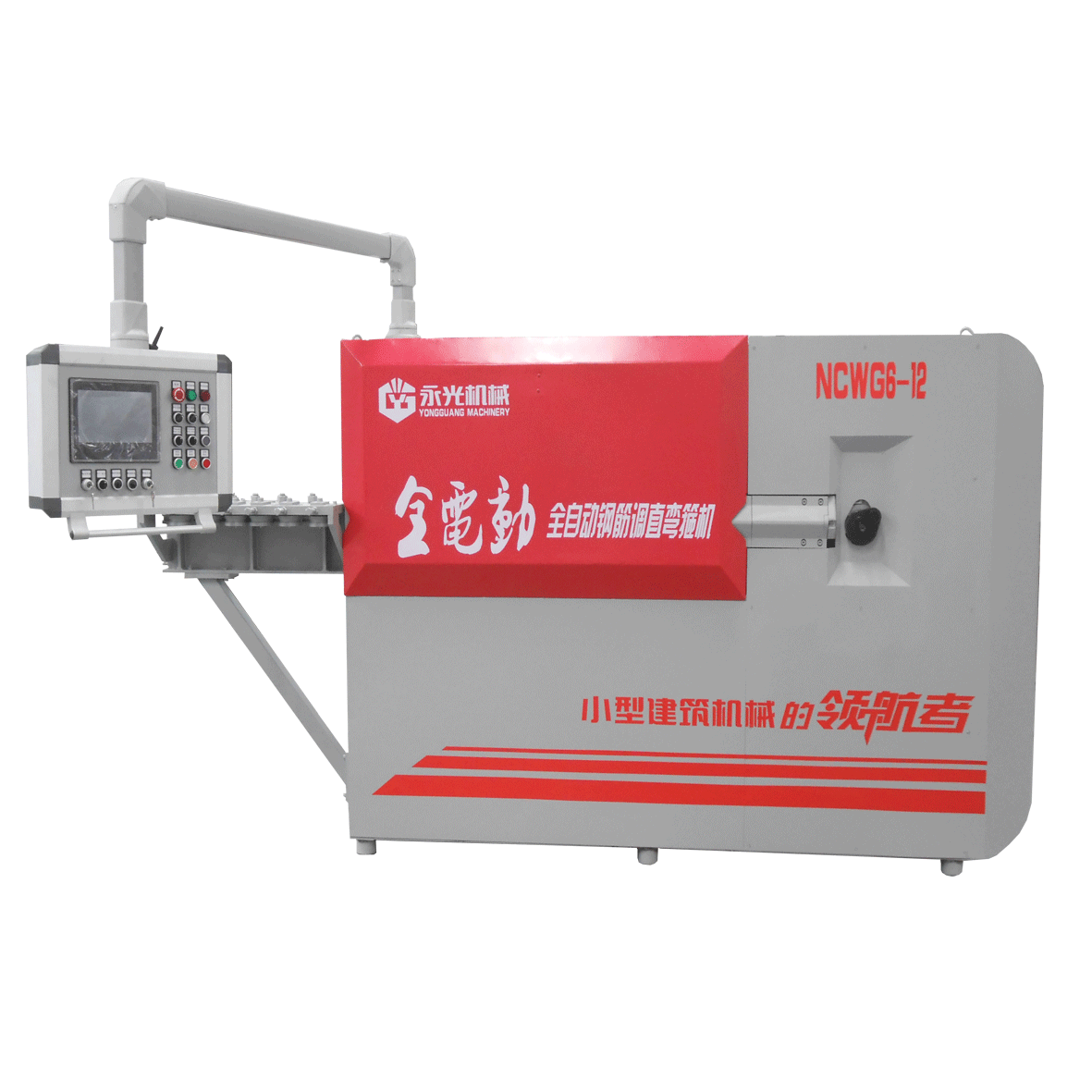

NCWG6-12型全自动钢筋调直弯箍机是一款加工钢筋的设备，能将钢筋调直、折弯、切断，可以将钢筋折成不同形状、不同尺寸的套子、拉钩，可以将盘条拉直。这是一款全自动设备，数字控制，加工产品尺寸精度高，形状美观、一致，生产效率高，操作界面未触摸屏加按钮开关，易学易用。

本设备是一款全电动设备，去除了老机型所用的气动或液压，使结构更加紧凑，减少占地空间。能源更加清洁，减少了污染。本设备在同类产品中体积最小，重量最轻，搬运方便，省时省力省空间。即可在工厂使用，又可在工地使用。

NCWG6-12 Automatic Reinforcing Bar Straightening and Hoop Bending Machine is a kind of reinforcing bar processing machine, which can straighten, bend, and cut the reinforcing bar, also fold the bar into different shape, different size of bush, hook, it can straight the whole roller steel wire rod. This is a kind of automatic equipment, digital controlling, elegant appearance, high precision working size, high working efficiency, touch screen operation interface, easy study and operating.

This equipment is a kind of full electric machine, instead of the pneumatic model, which has compact structre and reducd the floor space. Power is clean and low pollution. This equipment is the smallest volume, the lightest, easy to move, save time, save space. It can be used in factory or at work site.
