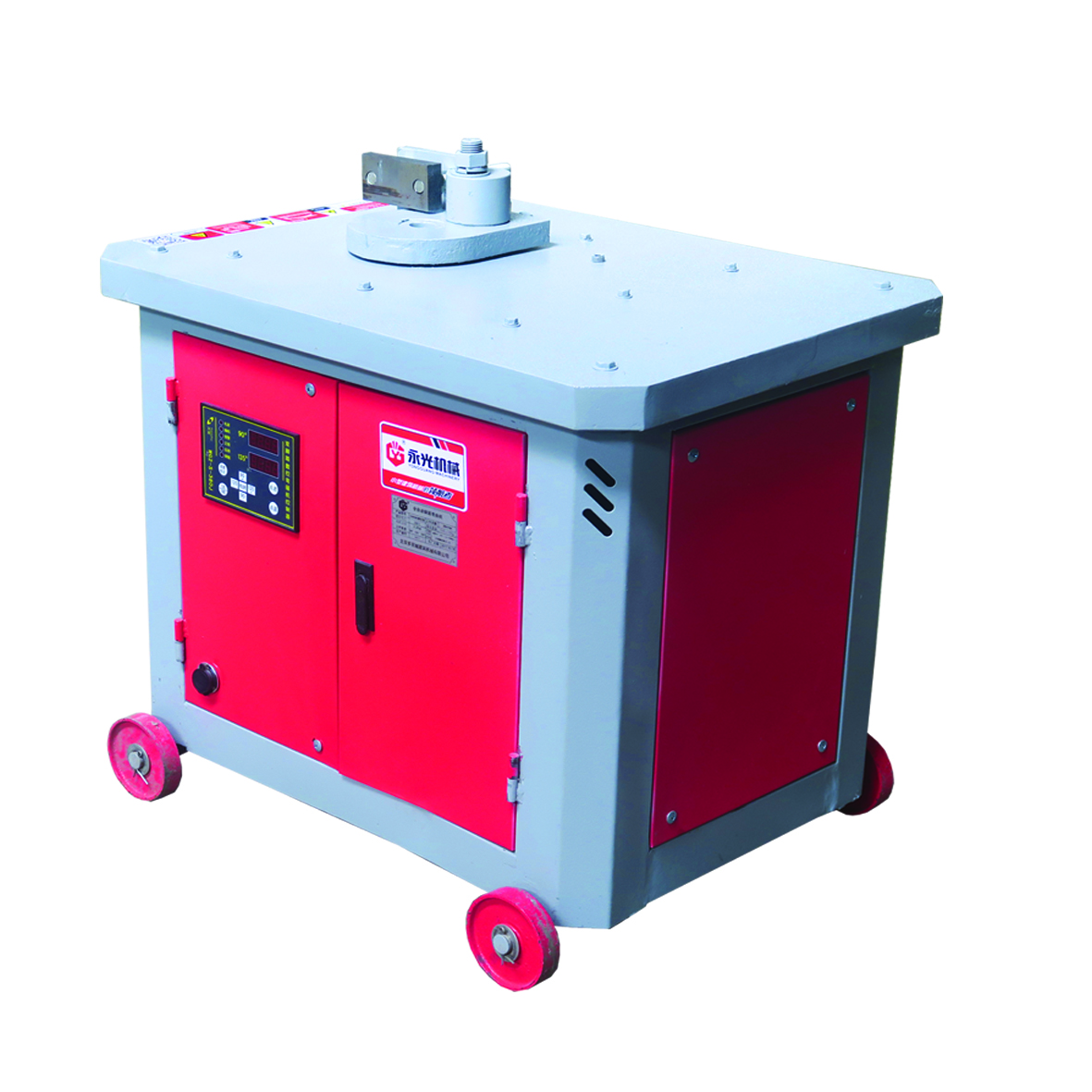

GW30B型全自动钢筋弯箍机主要技术参数

GW30B Full-automatic Steel Hoop Bending Machine Technical Parameter



项目/型号Item/Model	GW30B型
弯曲钢筋直径范围 Bending Range	φ4—φ30mm（光圆钢筋，σb≤450Mpa） Ⅱ级螺纹钢φ6 –φ28㎜ Ⅲ级螺纹钢φ6-φ25㎜
电机功率/Motor Power	2.2Kw
额定电压/Rated Voltage	380V
额定频率/ Rated Freqency	50Hz
电机型号/Motor Model	Y100L1—4
电机转速/Motor Speed	1440r/min
主轴转速/Spindle Rotating Speed	26r/min
外形尺寸/Dimensions	850X640X900 mm
包装尺寸（木箱出口型） Package Size(wooden box for export)
整机重量/The Whole Weight	210±10 Kg

GW30B型全自动箍筋弯曲机是一种新型高效的钢筋弯曲设备，它具有一次设定自动弯曲的独特功能，弯曲工序简单，工作效率高，角度预定并且准确，弯曲速度快。用户可根据实际情况自己设置定位尺，更能提高工效。本机采用封闭减速箱体，标准模数齿轮、噪音小，工作稳定，双脚踏开关，自动弯曲安全性高。控制角度的传感器采用非接触式，无撞击、无磨损。使用寿命长，控制电路依然采用市场常见的电路，维修简单，维修成本低。它是中、小直径钢筋弯曲的理想设备，更是大型弯曲机的重要补充设备.

GW30B Full-automatic Steel Hoop Bending Machine is a small bar bending device for a project. This machine bending process is simple and working efficiency is high. The angle controlled by control module, bending accurately. It can bend the σb≤450Mpa reinforced bar into various shapes required.

This machine is flexble, easy to use, and has stable performance, double foot pedal switch, bending automatically in safety. The sensor of the control angle is non-contact, no impact, no wear. L ONG USING LIFE. The bending efficiency is 4-5 times as other bending machines. It is not only the ideal equipment for small diameter steel bar bending, but also important supplementary for large bending machin
