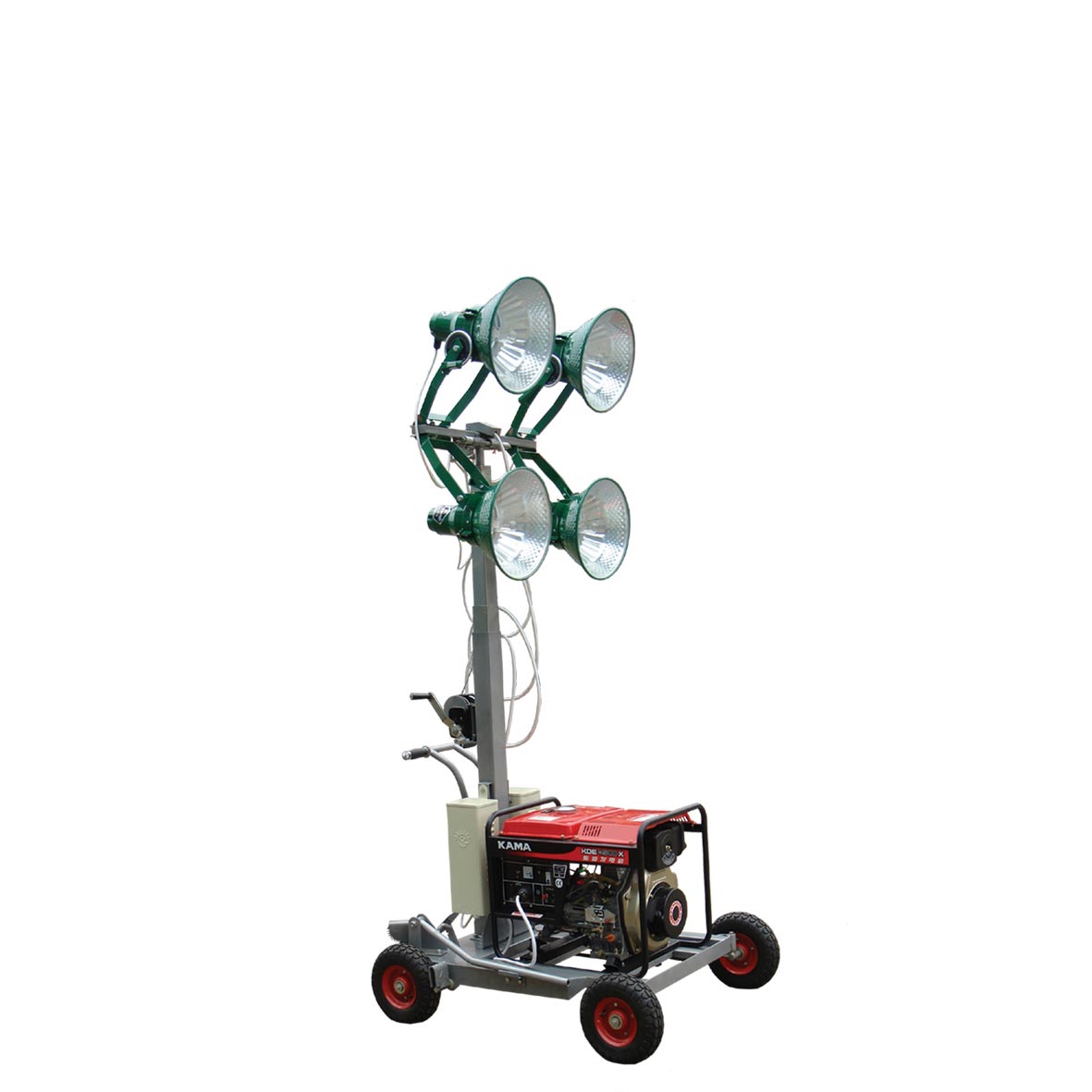

AL3000高杆照明灯车主要技术参考

AL3000 Construction Flodlight Vehicle Technical Parameter



项目/型号Item/Model	AL3000(柴油/Diesel fuel)	AL3000(汽油/Gasoline)
额定频率/Rated Frequency	50Hz	50Hz
额定电压/Rated Voltage	220v	220v
额定功率/Rated Power	2.8Kw	3.2Kw
最大功率/Maximum Power	3.1Kw	3.6Kw
照明灯功率 Foodlight Power	400W	400W
灯杆高度 Height of Light pole	2.1-4.5m	2.1-4.5M
油箱容量 Fuel Tank Capacity	13.5L	25L
光通量 Light Model（Lm）	140000Lm	140000Lm
外形尺寸 Dimensions	1200×950×2100mm	1200×950×2100mm
包装尺寸（木箱出口型） Package Size(wooden box for export)
整机重量 The Whole Weight	185±5Kg	180±5Kg



AL1100Q、AL1200Q防眩目照明灯车是采用燃油发电机作为动力源，金属卤化物灯具作为光源，灯源外部采用阻燃布料防眩目，通过启动升降杆调整照明高度，它具有360度大范围照明、无阴影，同时它还具有绿色环保，无光污染。本机采用本田发电机组，铝合金升降装置，体积小，重量轻，移动方便，故障率低等特点。该两种机型是抢险环境和夜间高速施工照明的首选机器。

AL1100Q、AL1200Q Glare-free Balloon Light Tower adopt fuel generator as the power source Metal halide lamps and lanterns as the light source. The flame retardant fabric is used around the light source for glare-free. The light height can be adjusted through the lifting poker. The light covers large range area from 360direction without shadow, at the same time which has green environmental protection and light non-pollution. This machine adopts HONDA generator set, aluminum alloy lifting device, which has the character of small volume, light weight, convenient movement and low fault rate. These two model machinery are the first choice of rescue environment and highway construction.
