AL1100Q、AL1200Q防眩目照明灯车主要技术参数

项目/型号Item/Model		AL1100Q	AL1200Q
照明 Lllumination	功率/灯数 Power/Lamp QUT	1000W×1	1000W×2
	光通量 Light Model（Lm）	110000	220000
	灯具类型 Light Model	金属卤化物 Metal halide	金属卤化物 Metal halide
	频率 Frequency	50/60Hz	50/60Hz
	有效照射范围 Effective Exposure Range	3500㎡	6000㎡
	工作温度 Working Temperature	85℃	85℃
	防护等级 Protection Level	IP54	IP54
发电机组 Generator Set	型号/Model	HONDA  EC2500CX	HONDA  EG4000CX
	额定功率 Rated Power	2.0kw	3.2kw
	最大功率 Maximum Power	2.2kw	3.6kw
	电压 Voltage	220-240V	220-240V
	频率 Frequency	50Hz	50Hz
	油箱容量 Fuel Tank Capacity	26L	26L
	使用时间 Use Time	13.5h	16h
灯杆 Pole	升降高度 Lifting Height	4.2m	6m
	升降方式 Lifting Mode	气动	气动
	灯杆节数 Pole Number	三节	三---四节
	抗斜角度 Anti-inclined Angle	＜10°	＜10°
	抗风 Wind Resistance	＜6级	＜6级
	收纳高度 Admission Height	1.5m	1.8m
外形尺寸/Dimensions		1000×800×800mm	1100×850×800mm
重量/Weight		110kg	200kg
噪音水平/Noise Level		7米处/meterd≤65dbA	7米处/meterd≤65dbA

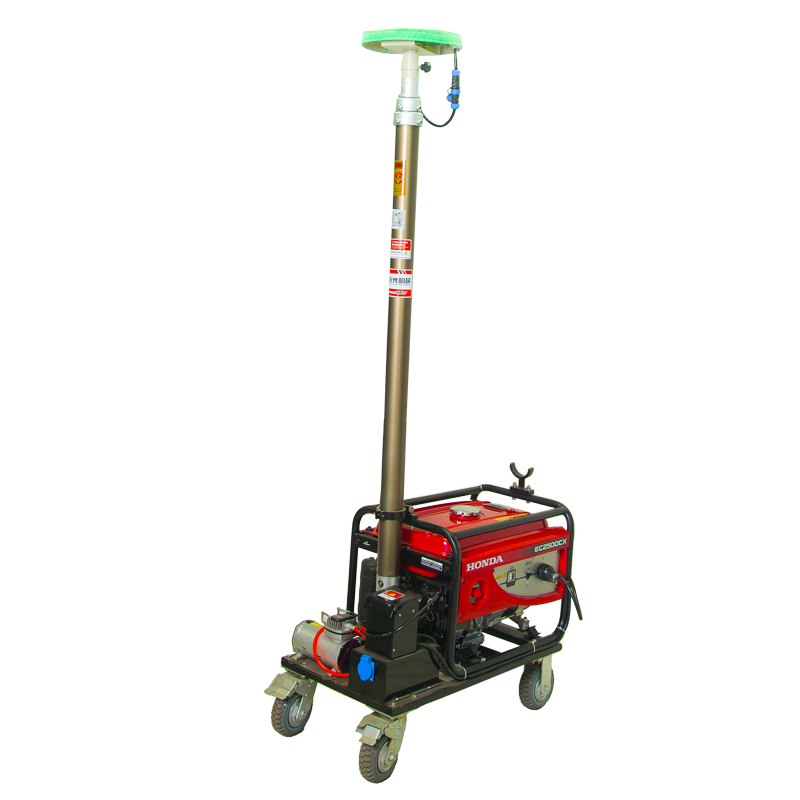

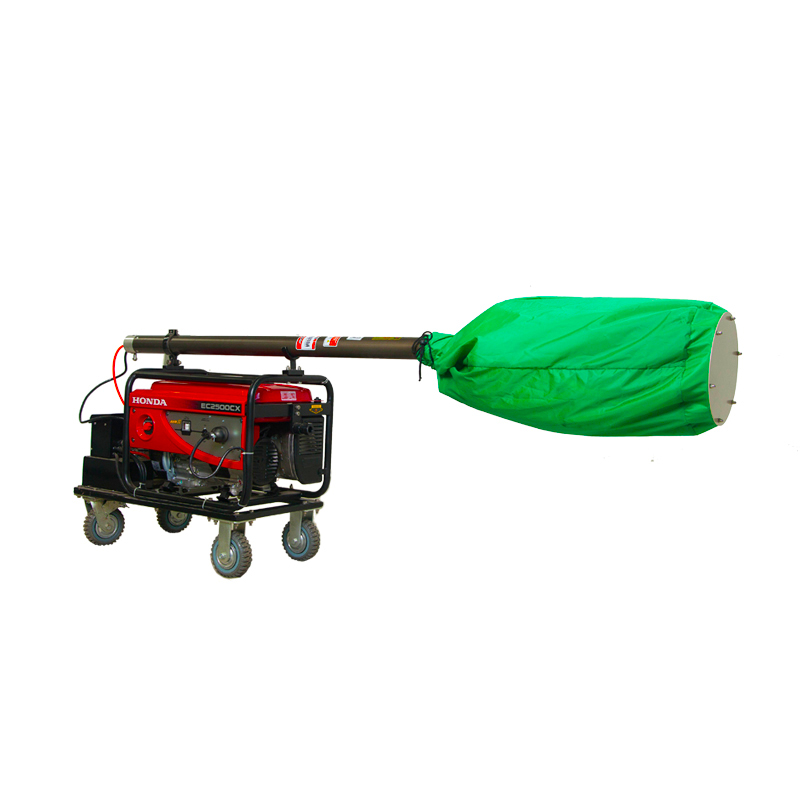

AL1100Q、AL1200Q防眩目照明灯车是采用燃油发电机作为动力源，金属卤化物灯具作为光源，灯源外部采用阻燃布料防眩目，通过启动升降杆调整照明高度，它具有360度大范围照明、无阴影，同时它还具有绿色环保，无光污染。本机采用本田发电机组，铝合金升降装置，体积小，重量轻，移动方便，故障率低等特点。该两种机型是抢险环境和夜间高速施工照明的首选机器。

AL1100Q、AL1200Q Glare-free Balloon Light Tower adopt fuel generator as the power source Metal halide lamps and lanterns as the light source. The flame retardant fabric is used around the light source for glare-free. The light height can be adjusted through the lifting poker. The light covers large range area from 360direction without shadow, at the same time which has green environmental protection and light non-pollution. This machine adopts HONDA generator set, aluminum alloy lifting device, which has the character of small volume, light weight, convenient movement and low fault rate. These two model machinery are the first choice of rescue environment and highway construction.
