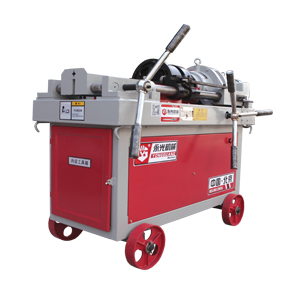

HGS40A型钢筋直螺纹滚丝机技术参数

HGS-40A Reinforced Straight Thread Roller Machine Technical Parameter



项目/型号Item/Model	HGS40A型
加工钢筋范围 Steel Bar Range	Ⅲ级螺纹钢φ16—φ32mm
电机功率/Motor Power	4.0Kw
电机型号/Motor Model	Y112M—4
额定电压 Rated Voltage	380V
额定功率 Rated Power	50Hz
电机转速 Motor Rotating Speed	1440r/min
主轴转速 Spindle Rotating Speed	40—62r/min
减速机速比 Gear Rotating Speed Ratio	1:19
最大加工长度 Maximum Working Length	80mm
加工螺纹牙型 Process Thread Tooth Type	75度
外形尺寸 Dimensions	850X640X900 mm
包装尺寸（木箱出口型） Package Size(wooden box for export)
整机重量 The Whole Weight	370±10 Kg

HGS-40A型钢筋直螺纹滚丝机，主要用于建筑工程带肋钢筋加工滚轧直螺纹丝头，是实现钢筋直螺纹连接的关键设备。可加工直径为16-32mm的HRB335和HRB400级带肋钢筋

HGS-40A Reinforced Straight Thread Roller, mainly used in the construction engineering for the rolling straight thread of the ribbed steel bar, which is the key equipment to realize the reinforced straight thread connection. HRB335 and HRB400 ribbed bar with a diameter of 16-32mm.
