GQ50型钢筋切断机主要技术参数（钢筋抗拉强度σb≤450Mpa以下）

GQ50 Reinforcing Bar Cutting Machine technical parameters (reinforced ultimate tensile strength σb≤450Mpa below)



项目/型号Item/Model		GQ50型
切断钢筋最大直径（mm） Maximum Cutting Steel Bar Diameter		φ6-φ50
切螺纹钢最大规格（mm） Cutting Deformed Steel Bar Diameter	Ⅱ级螺纹钢 Grade II Thread steel	φ6-φ40（II级螺纹钢）
	Ⅲ级螺纹钢 Grade III Thread steel	φ6-φ36（Ⅲ级螺纹钢）
切刀公称冲程（mm） Cutting Knife Nominal Stroke		44
连续切断次数（次/min）Continuous Cutting Off Times		32
电动机型号Motor Model		Y112M-2
电动机功率Motor Power		4.0Kw
额定电压Rated voltage		380 V±5%
电动机转速Motor Rotating Speed		2880r/min
外型尺寸（mm）Dimensions		1485×615×740
包装尺寸（木箱出口型） Package Size(wooden box export)
整机质量The Whole Weight		570±10Kg

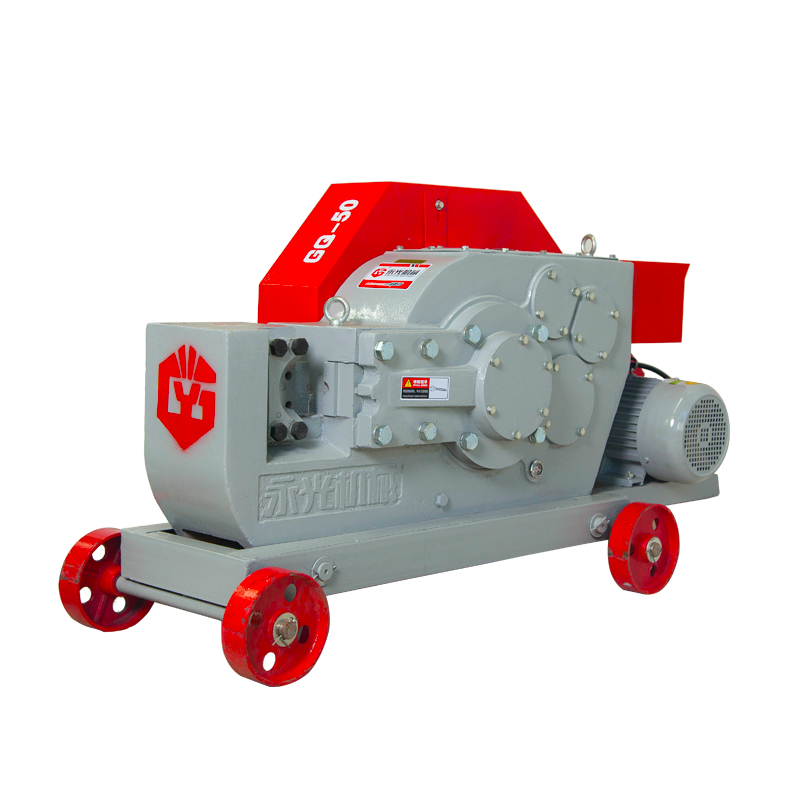

GQ50型钢筋切断机，适用于建筑工程上各种钢筋混凝土中普通碳素钢及热轧圆钢和螺纹钢的切断，也可用于切断扁钢、方钢、螺纹钢和角钢，为您的施工降低大量的人力，大幅提高功效。该机具有以下特点。

1、  体积小、结构紧凑、噪音低，冲程大。

2、  润滑性能好：采用箱式封闭结构，齿轮飞溅润滑（油面应不高于油标刻线，使机器始终处于适当的润滑状态）

3、  功率损耗少：因润滑条件的改善，齿轮轴端采用滚动轴承，阻力小，与同类切断机相比同负载时功率损耗可降低三分之一。

4、移动方便：四轮着地，机动灵活，稳定可靠，维修方便

GQ50 Reinforcing Bar Cutting Machine, is used to cut off all kinds of normal carbon steel, hot rolling bar and deformed steel bar used in concrete, and its biggest advantage is cut off the deformed steel bars. The cross-section of the steel bar end cut by this machine is very parallel and level, which can be directly for threading working. It reduce the worker number and improve the efficiency significantly. This machine has the following characteristise.

1、  Small volume, compact structure, low noise, large stroke.

2、  Lubricating performance: adopt the box-type closed structure, gear spiash lubrication (oil surface should not be higher than standard oil groove, so that the machine is always in a proper lubrication state)

3、  Less power loss: due to the improvement of lubrication condition, gear shaft end uses rolling bearings, the resistance is small,compared with the same kind of cutting machine, the power loss can be reduced by 1/3.

4、  Convenient movement: the four wheels on the ground, flexible, stable and reliable, convrnient maintenance.
