HCR80c1系列振动冲击夯主要主要技术参数

HCR80c1 Series Vibratory Rammer Technical Parameter

项目/型号 Item/Model	HCR80C1
动力 Power	本田汽油机 5.5 hp
跳起高度 Jump Height	≥55mm
前进速度 Forward Speed	10-13m/min
冲击次数 Impact Times	650-695次/分BPM
夯板面积 Plate Area	0.09m2
冲击力 Impact Force	14．2KN
外形尺寸(mm) Dimensions	760×430×1020
整机重量 The Whole Weight	80±3kg



HCR80C1型振动冲击夯是采用国内先进技术研制开发的新型夯实机械，具有设计先进、结构紧凑、性能卓越、振力大、效率高、适应范围广、操作简便、使用安全、新颖美观等特点。该系列产品是有不同品牌和型号的发动机装配而成，用户选购范围广。

该产品用途广泛，不仅适用于各种砂、砾石、三合土的夯实平整，也适用于对沥青砂石、混凝土和黏土的夯实平整，特别适用于建筑、地面、庭院、路基、桥桩、沟槽、野外、狭窄场地等环境的施工，在无电环境下，胜任大中型机械无法完成的施工任务。

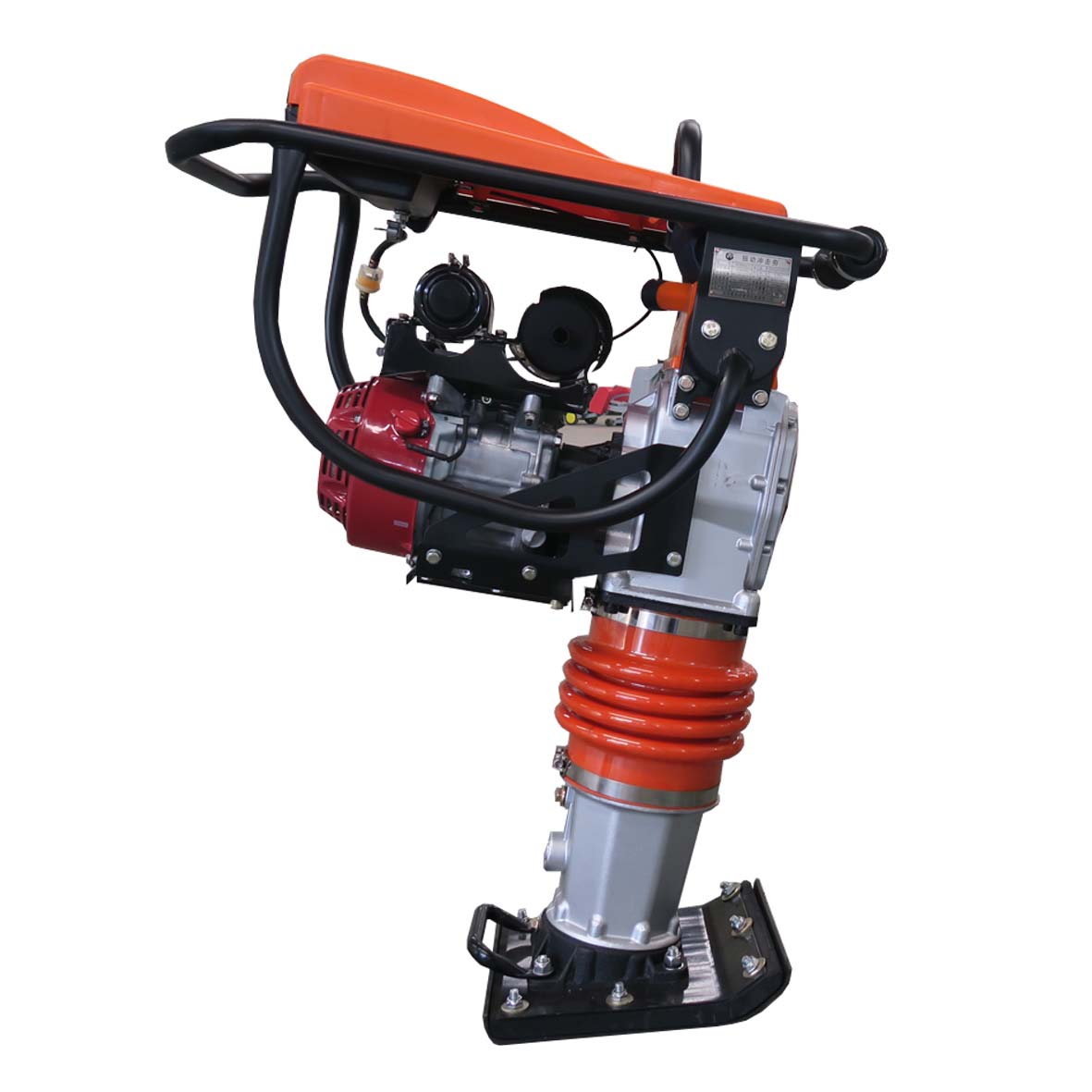

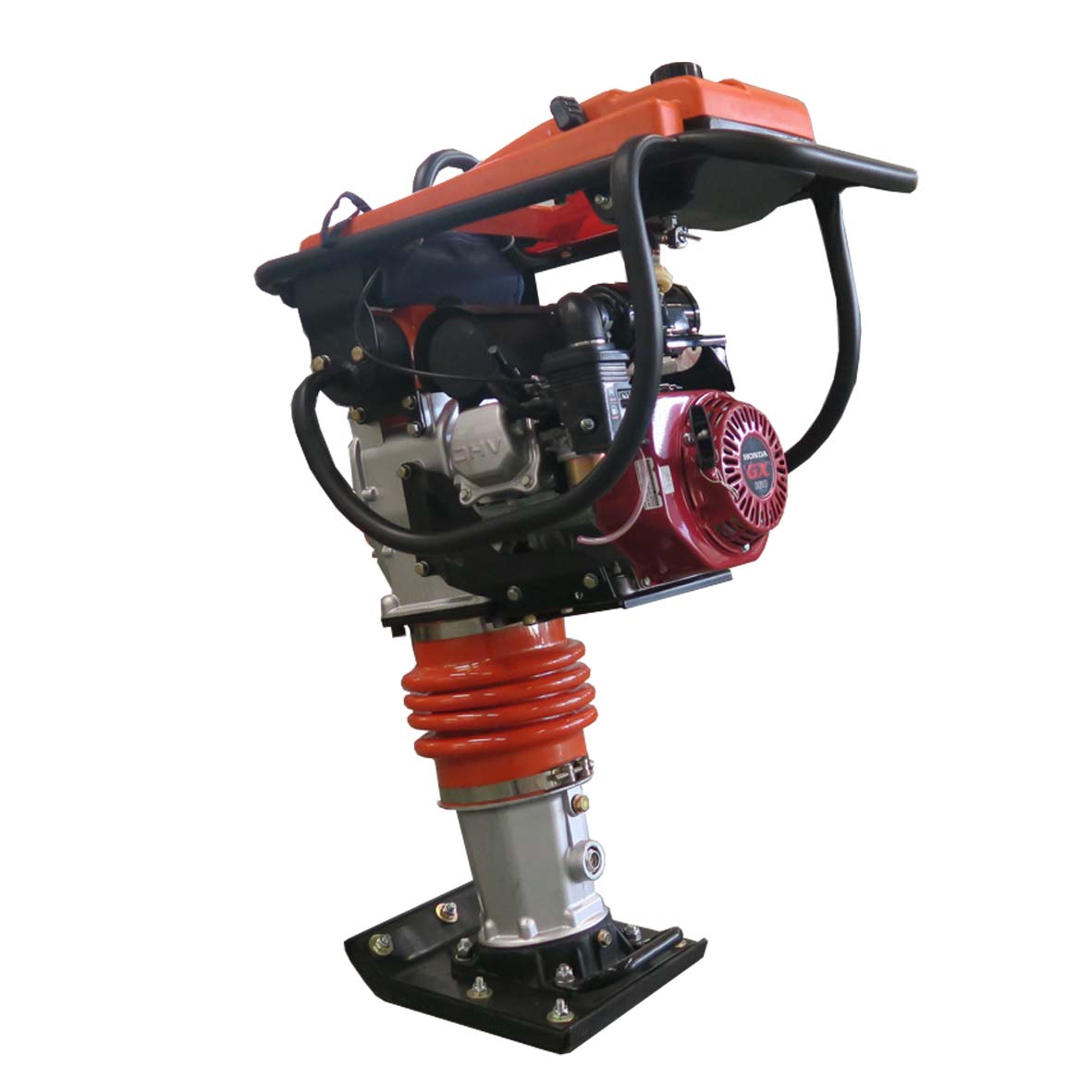

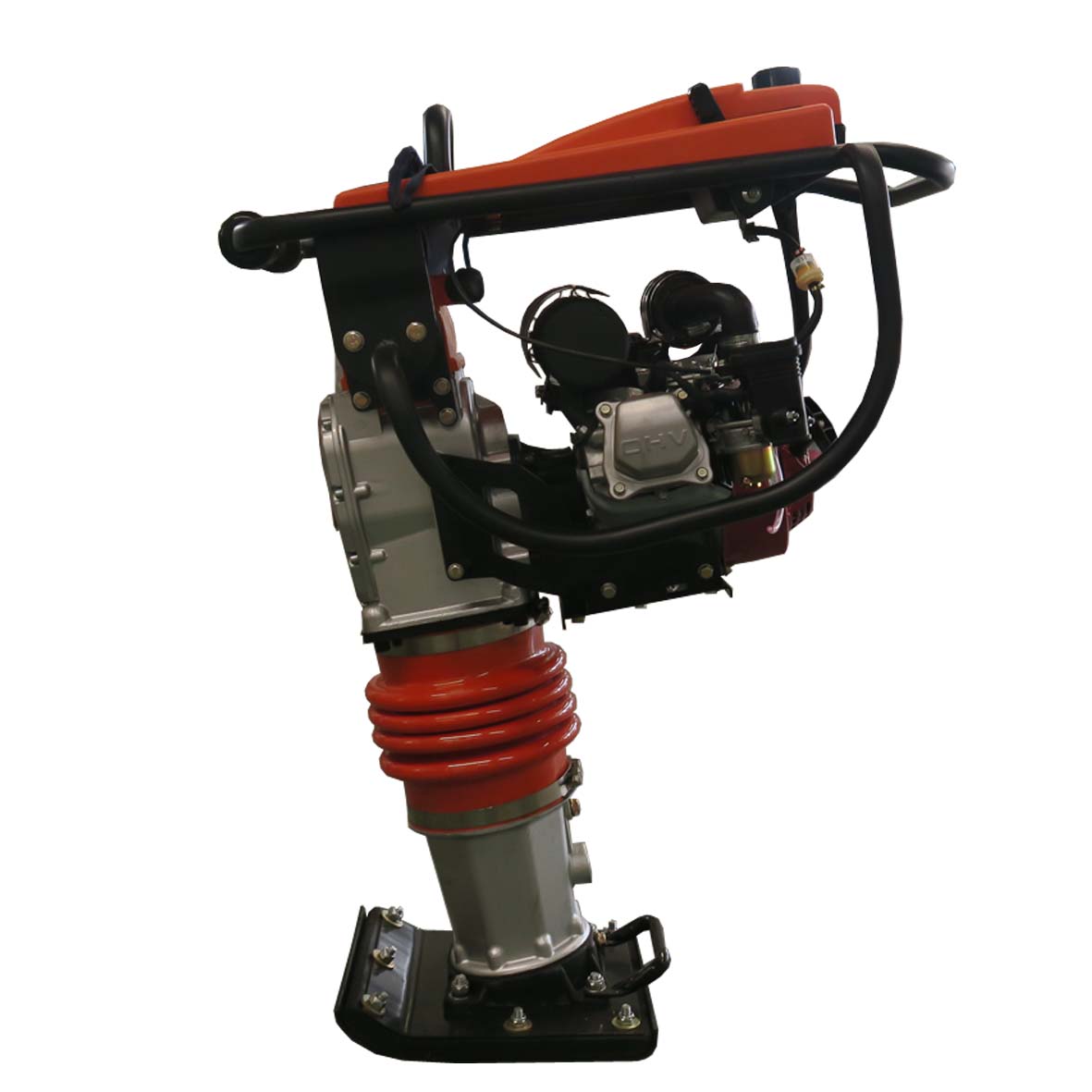

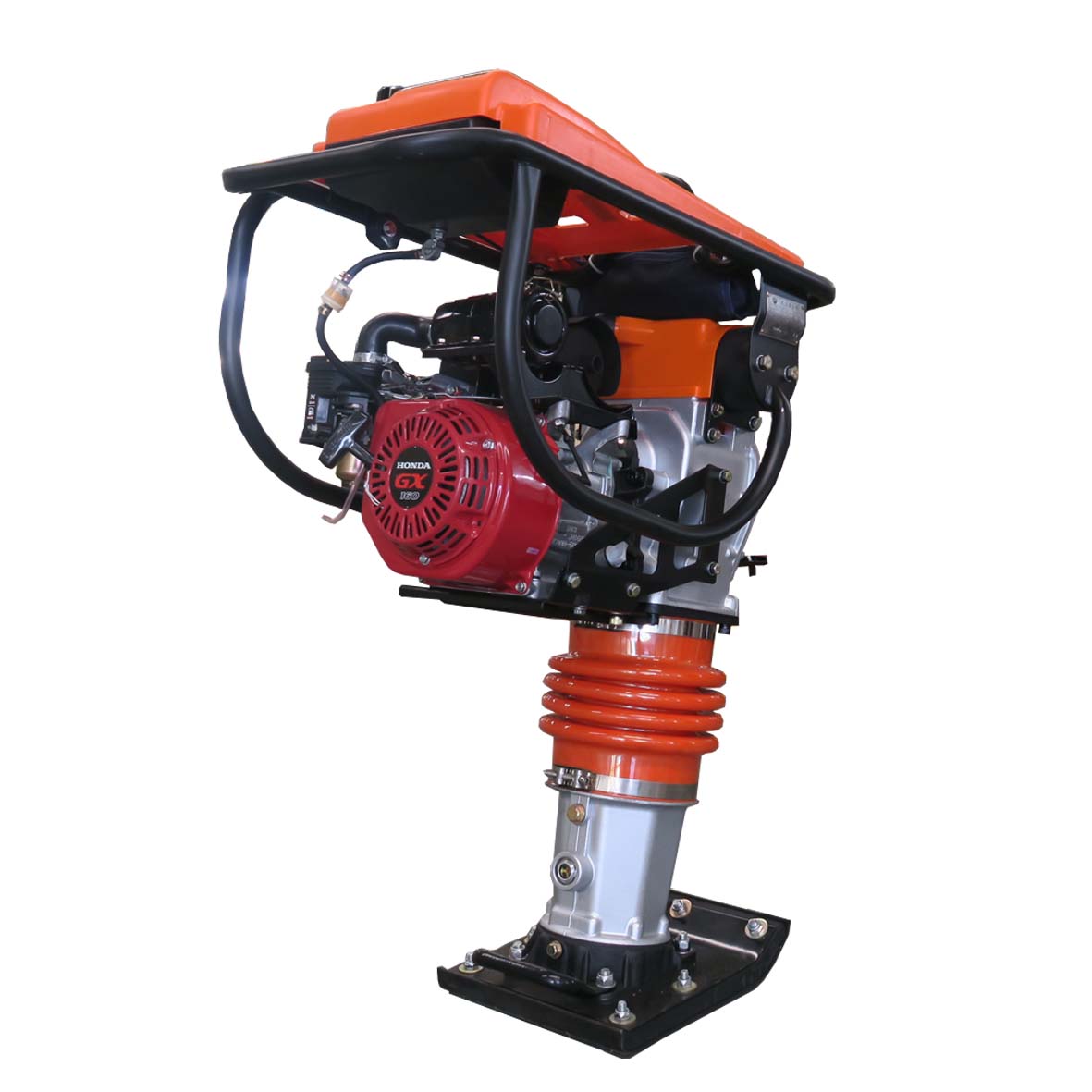

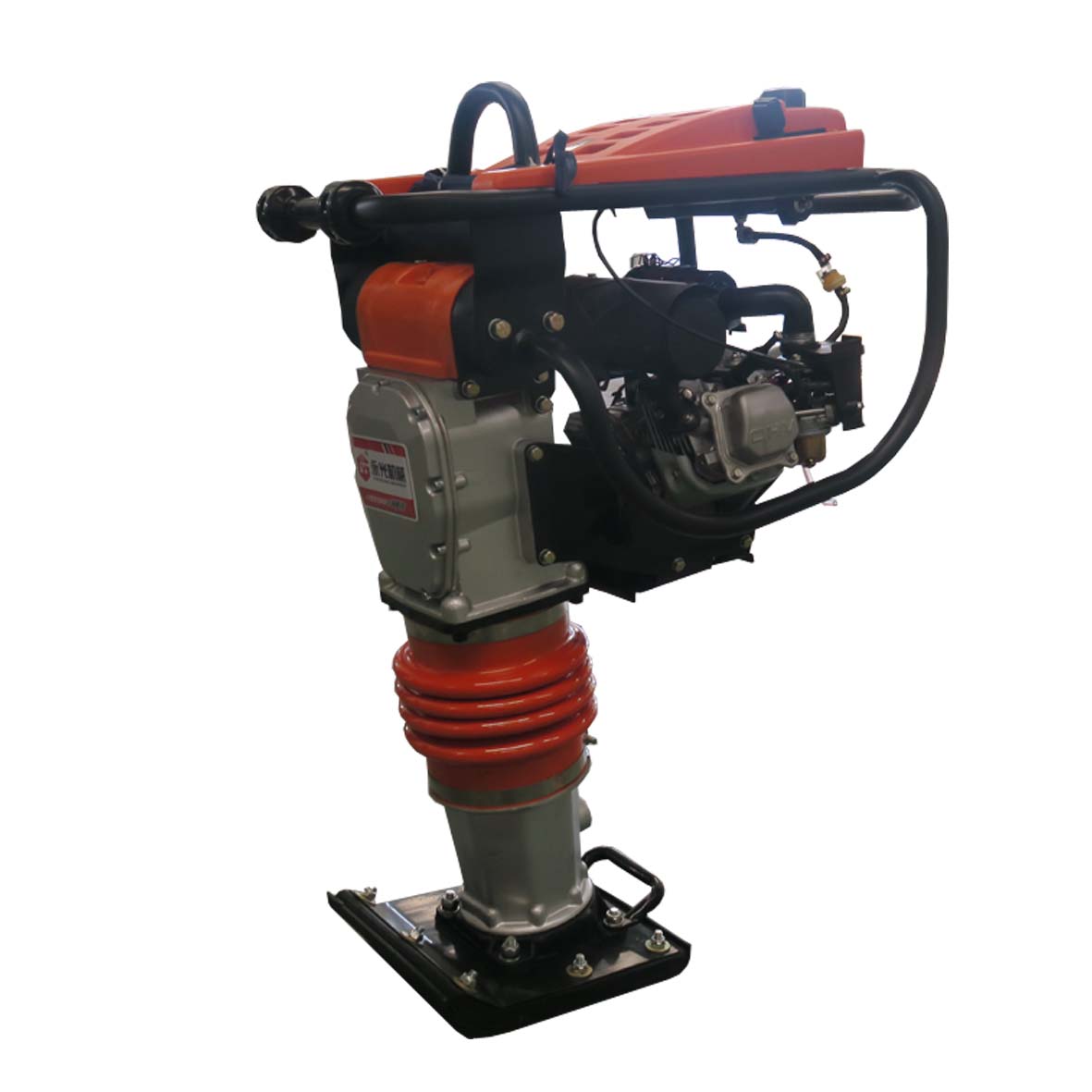

HCR80C1 Vibratory Rammer is a new type of compacting machine designed and developed by national advanced technology, which has the advantage of advanced designation, compact structure, high performance, high vibration, high effciency, wide adaptability, easy operation, safety, novel and beautiful appearance and so on. The series of products are assembled by different brands and models of engines, which supply wide range of option.

Extensive use of the product, which is not only suitable for all kinds of sand and gravel, tibia, but also for the asphalt gravel, concrete and clay, especially suitable for the construction of the building, floor, the garden, roadbed, bridge pier, groove, field, narrow site and so on. In the envirment without electicity, is qualified for the task that the large and medium-sized machinery can’t do.
