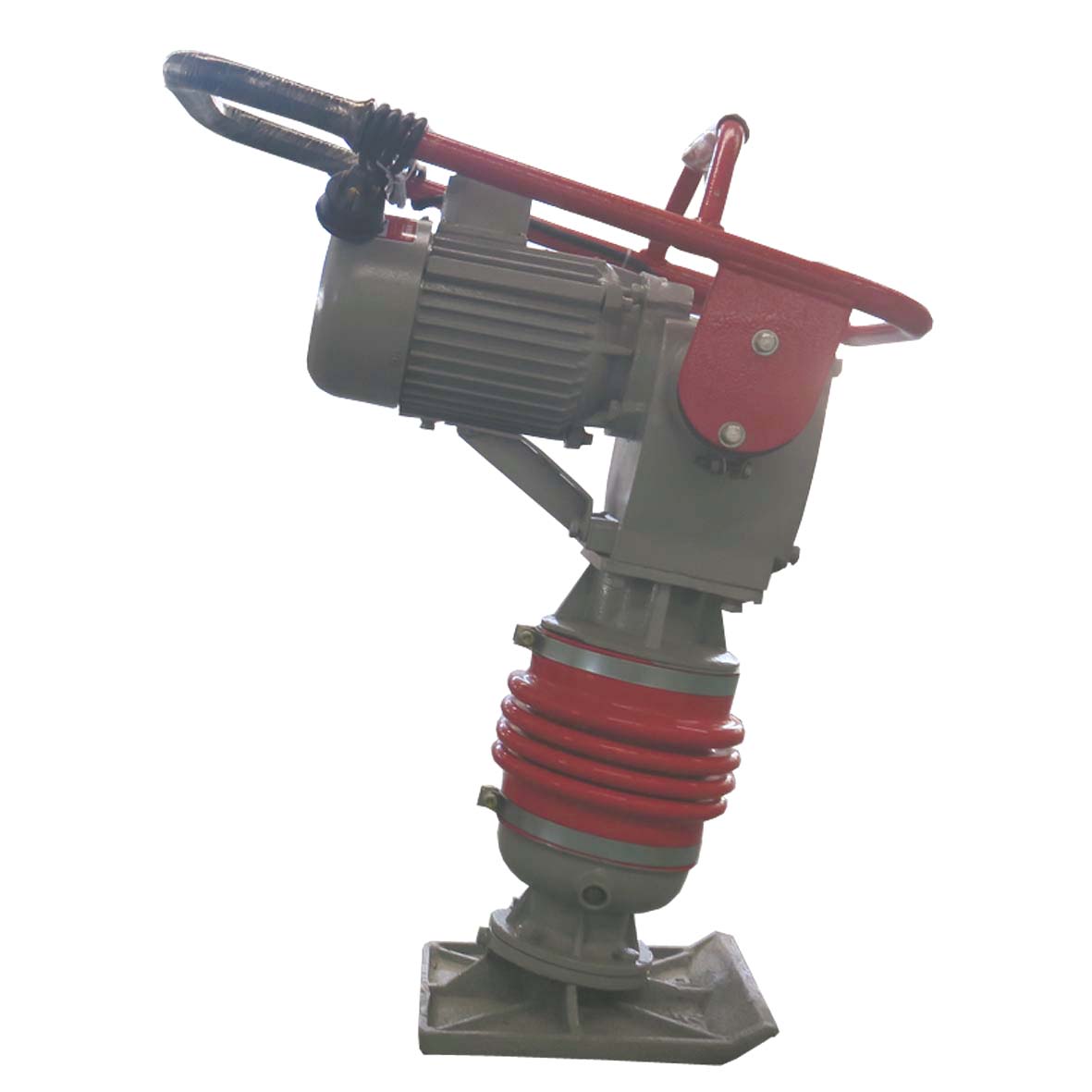

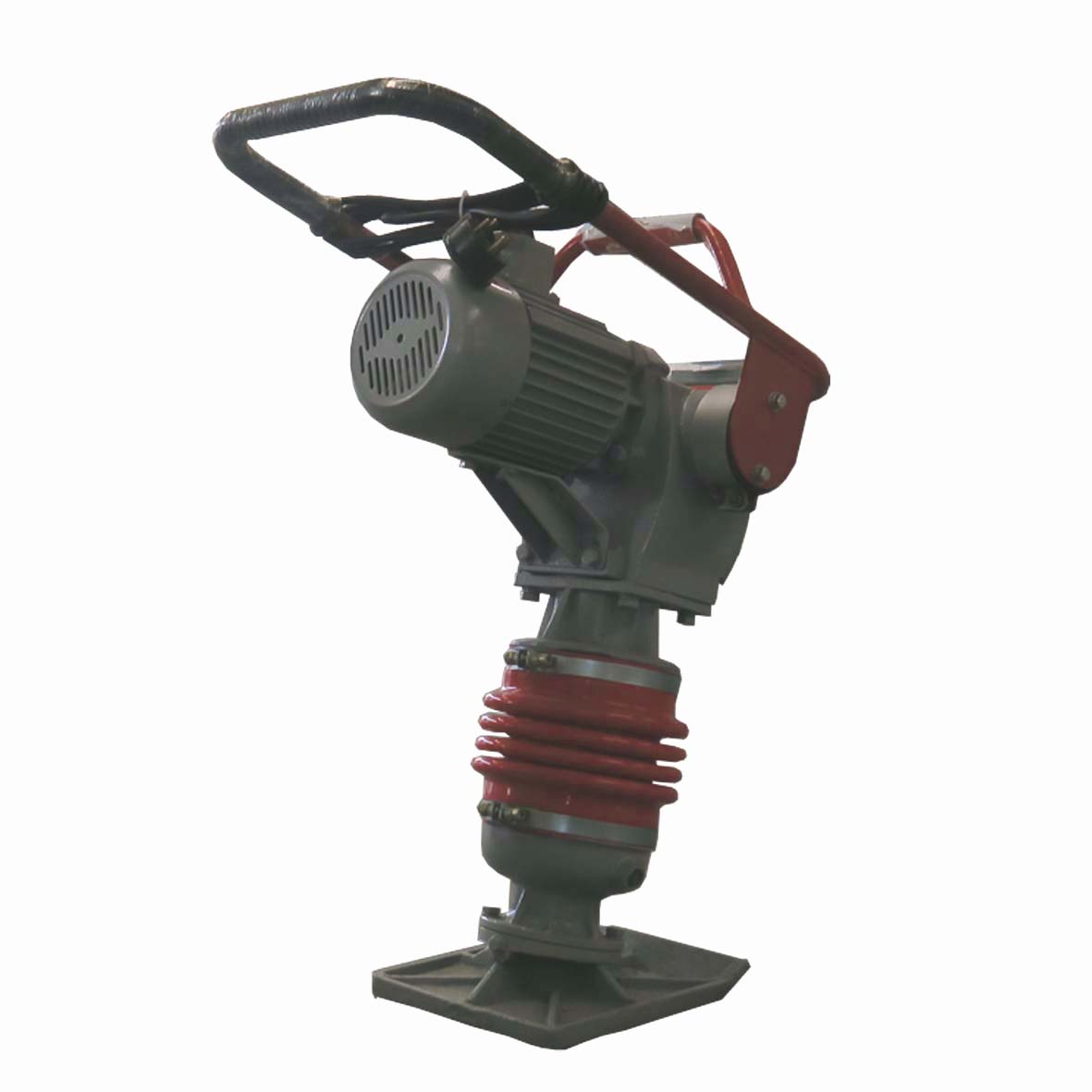

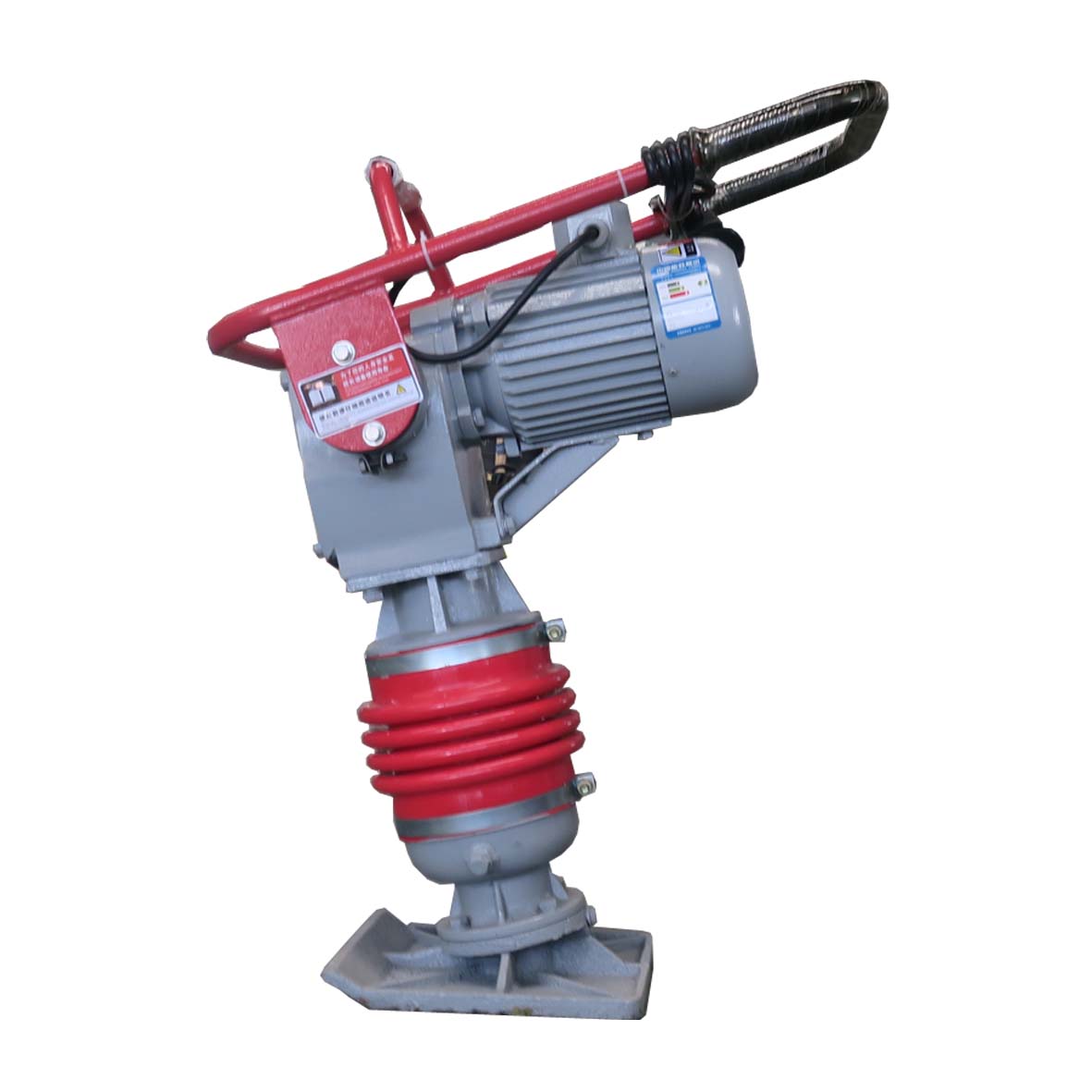

HCD90型冲击夯技术参数

HCD90 Vibratory Rammer Technical Parameter

项目/型号 Item/Model	HCD90型
电机型号 Electric Motor model	YSH90L2-2
电机功率 Electric Motor	3．0 KW
电压 Voltage	380V
冲击次数 Impact Times	约580次/分
跳起高度 Jump Height	≤50mm
前进速度 Forward Speed	8-12m/min
夯板面积 Plate Area	0.08㎡
外型尺寸 Dimensions	350×690×850mm
包装尺寸（木箱出口型） Package Size(wooden box for export)
整机重量 The Whole Weight	90±3Kg



HCD70、HCD80、HCD90型振动冲击夯是一种夯实机械，它具有体积小，重量轻、贴边性能好，能原地转向，操作灵便，夯实效率高等特点，该夯机适用于素土、碎石、三合土及各种砂性土壤的夯实，它广泛的应用在公路、铁路、市政建设中，对路基、边坡、管道铺设，回填土的夯实，以及道路、桥梁、水库、房屋等建筑物的基础施工作业，特别适用于室内地面、庭院、墙根及各种沟槽等狭窄场地的施工，可胜任其它大中型夯实机无法完成的工作。

HCD70、HCD80 and HCD90 Vibratory Rammer is a kind of compaction mechanism. Characeteristics of it are slight volume, light weight, well welt capability, turnaround in-situ, agile operation and high ramming effciency.

This tamper is suitable for the pureness earth,the crushed stone, the concrete cement and each kind of grittiness soil. It is widely used in the road, the railroad, and the municipal administration construction, for the ramming of the roadbed, the side slope, pipeline paved, backfill earth, as well as foundation construction work such as path, bridge, reservoir, house and so on.It is also competent in the work which other large-sized and medium-sized tampers are unable to complete.
