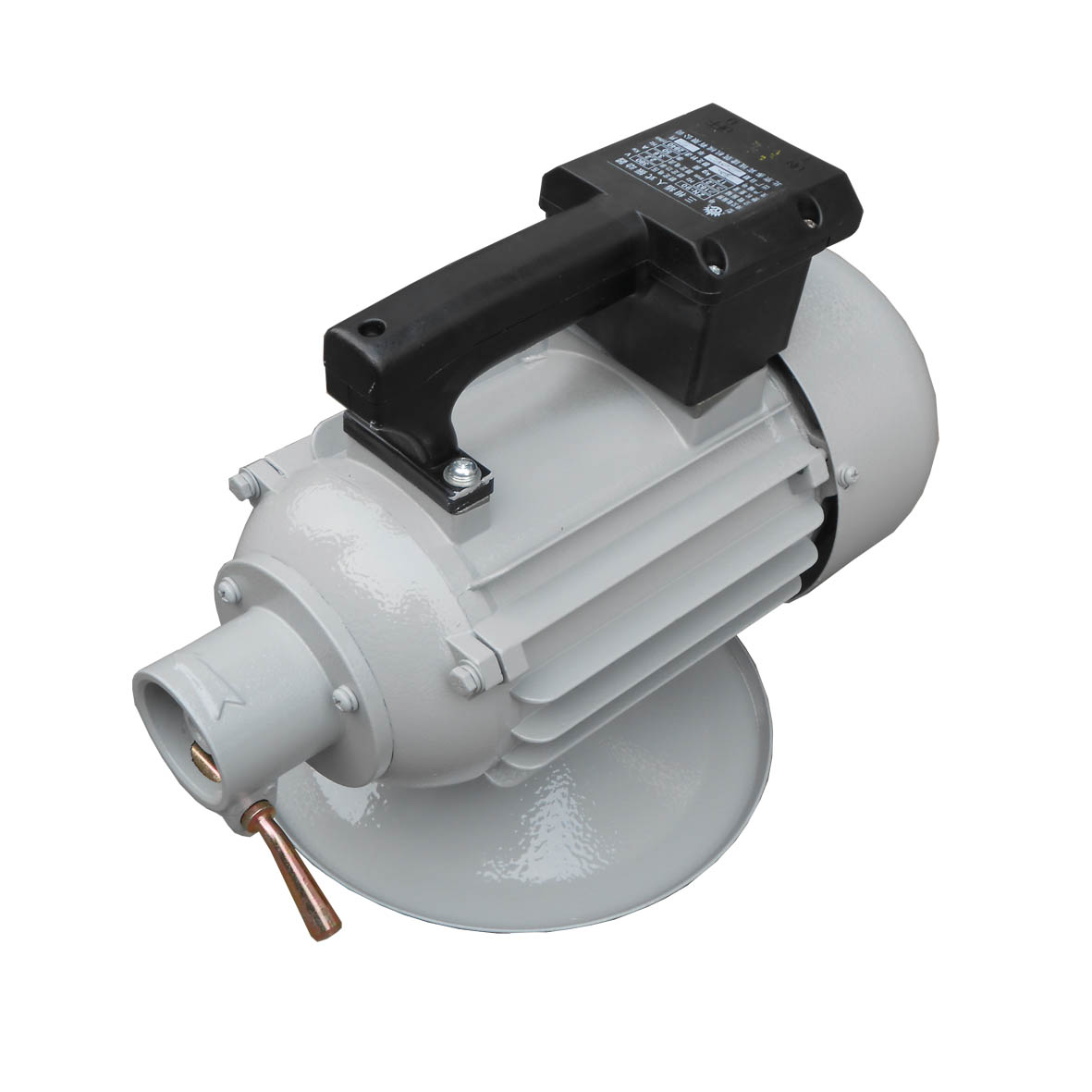

ZN70、ZN90插入式混凝土振动器主要技术参数

ZN70、ZN90 Plug-in Vibrator Technical Parameter



项目/型号Item/Model	ZN70圆插	ZN90圆插
额定电压 Rated Voltage	380V
额定功率 Rated Power	1.5Kw	2.2Kw
额定转速 Rated Rotating Speed	2840r/min
棒空载频率 Spear No-load Frequency	≥138Hz
空载振幅 No-load Vibrating Amplitude	≥1mm	≥1.2mm
外形尺寸 Dimensions	390×260×290mm	340×260×290 mm
包装尺寸（木箱出口型） Package Size(wooden box for export)
整机重量 The Whole Weight	15Kg	17Kg



ZN70、ZN90插入式混凝土振动器是近代混凝土工程施工中的重要机械，凡浇筑混凝土构件，能插入振动棒者均能使用，如：浇筑混凝土柱、墙、立梁、次梁及预制构件等。它特别适用于浇筑轻小件及薄壁构件，对于振捣塑性、半干硬性、干硬性混凝土均能适应。是振捣混凝土效率较高的振动器；该两种型号电机需配合振动棒进行使用。

ZN70、ZN90 Plug-in Vibrator is the important machinery in the mogern concrete project construction and can be used in any building concrete component if it can insert the vibrating spear, for example, construction the pyramid, wall, stand girder, secondary girder and the prefabricated component and so on. It is suitable especially in constructing hight small piece and the thin wall component and inspiring and pounding to mold the subarid rigiity, the dry and hard concrete. It is one of the efficiency high inspiring &pounding concrete vibrator. These two types of electric motor is needed to use with vibrating spear.
