GTY5-12型液压钢筋调直切断机主要技术参考

GTY5-12 Hydraulic Reinforcing Bar Straightening and Cutting Machine Technical Parameter



项目/型号Item/Model		GTY6-14	GTY5-12
调直范围/Straightening Speed		φ6-φ14㎜（光圆） φ6-φ12㎜（螺纹）	φ5-φ12㎜（光圆） φ6-φ10㎜（螺纹）
调直速度/ Straightening Speed		30-45m/min	30-45m/min
自动切断长度 Automatic Cutting Length	最短/The Shortest	0.5m
	最长/The Longest	可设置/Can be set 99.99m
切断长度误差/Cut length error		≤20mm
调直用电机 Straightening Electric Motor	型号/ Model	Y132M2-4	Y132M-4
	功率/ Power	9.0Kw	7.5Kw
	额定电压/ Rated Voltage	380V	380V
	额定频率/ Rated Frequency	50Hz	50Hz
	额定转速/ Rated Speed	1440r/min	1440r/min
外形尺寸/Dimensions		1620×800×900㎜	1300×530×830㎜
包装尺寸（木箱出口型） Package Size(wooden box for export)
整机重量/The Whole Weight		380±5Kg	248±5Kg

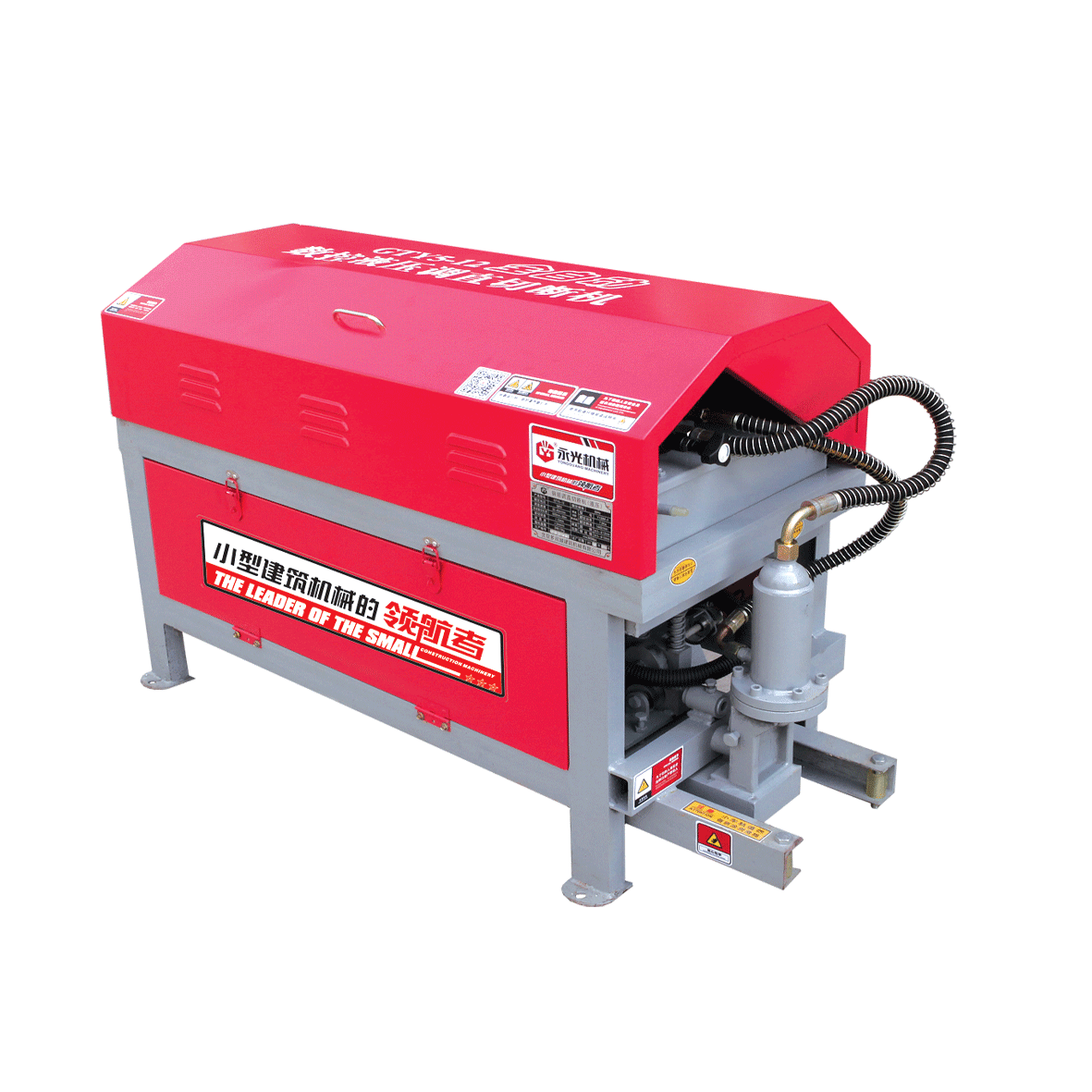

GTY5-12型液压钢筋调直切断机是一种钢筋调直切断设备。该机是各种建筑公司以及钢筋加工企业理想的钢筋加工设备。该机具有液压切断，精确计米计长及数量，大批次，多种类料单，开机一次设置完成的特点。该机控制电路采用单片机集成电路控制，控制电压24V对人体绝无伤害，操作非常安全可靠。该机采用滚轮调直，无论是加工盘圆（光圆）或螺纹钢筋，对其表面损伤也非常轻，设置数值简单易用。该机具有操作安全系数高等诸多优点。

GTY5-12 Hydraulic Reinforcing Bar Straightening and Cutting Machine is a kind of steel bar straightening and cutting equipment. The machine is aideal machine for variety of construction companies and steel bar working enterprises. The machine has the character of completing hydraulic cutting, accurate metering and counting, big batch and many kinds in one staring machine. The machine control circuit is integrated circuit, the controlling voltage is 24V which is not harmful to human body; and the operation is safe and reliable. The machine uses the rolling wheel to straighten, whether it straight coil steel bar or rebar, their surface damage is very light, setting the numerical value simple and easy to use. The machine had many advantages of high operating safety and so on.
