ZLR18A、ZLR20S型振动压路机主要技术参数

ZLR18A、ZLR20S Walk-behind Vibatory Pavement Roller Technical Parameter





项目/型号 Item/Model	ZLR18A	ZLR20S
发动机型号 Engine Model	HONDA GX160	HONDA GX270
发动机功率 Engine Power	5.5hp	9.0 hp
行走方式 Walking Way	双向液压 Two Way hydraulic pressure
振动频率 Vibration Freqency	68Hz	70Hz
激振力 Exciting Force	18KN(1.83T)	20KN(2.04T)
钢轮尺寸 Steel Wheel Size	φ425×600（单）	φ425×600（双）
爬坡能力 Climbing Ability	≤20度	≤20度
外形尺寸 Dimensions	1300×820×1020mm	1980×820×1020 mm
包装尺寸（木箱出口型） Package Size(wooden box for export)
整机重量 The Whole Weight	315±10Kg	550±10Kg

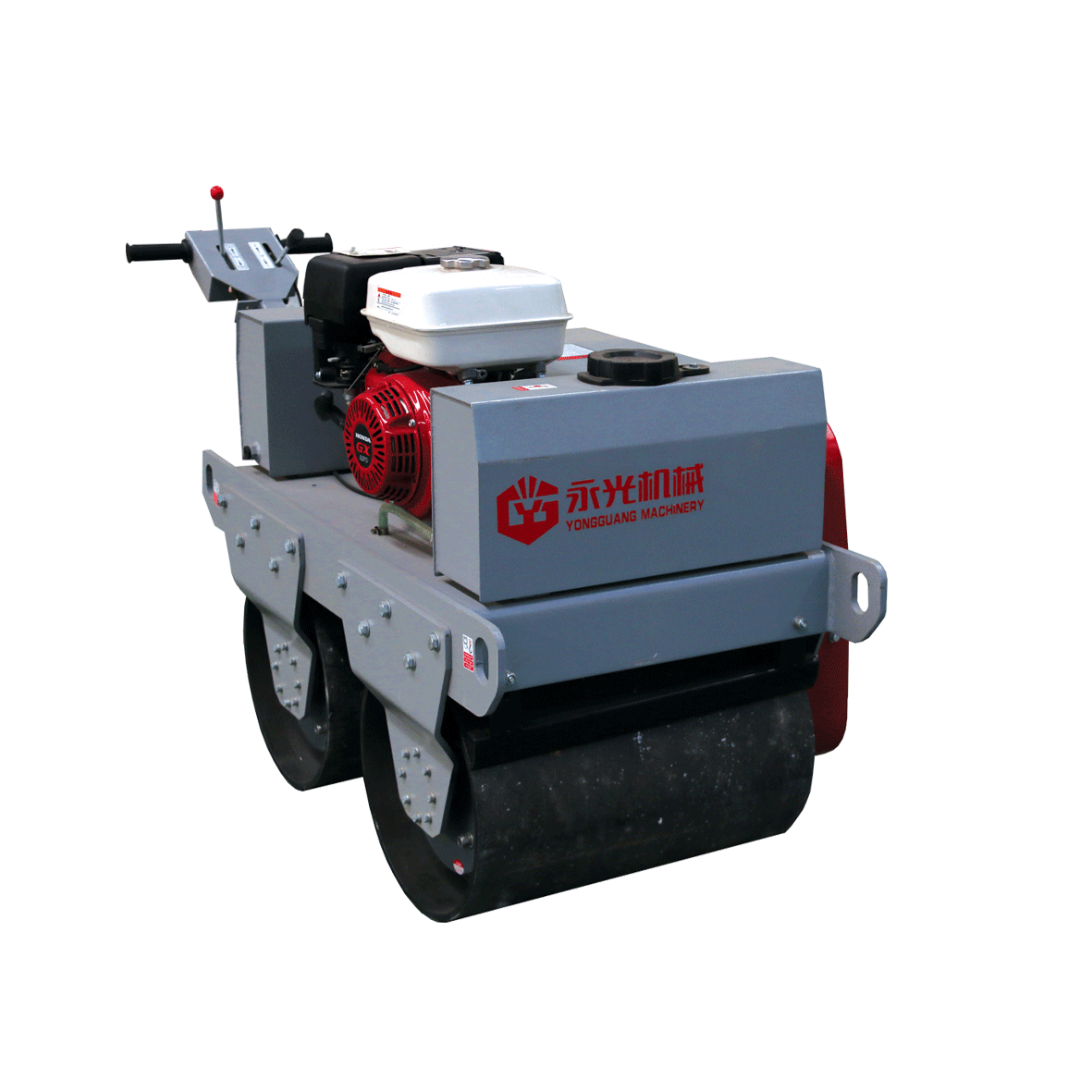

ZLR20S型振动压路机具有体积小，结构紧凑，易运输，工作力量大，效率高，并可与大型压路机配套使用，用于路基、基础表面、沥青表面的人行道，井盖周边，路肩以及小规模铺装工程，也可用于路面填埋后、道路坑洼的修补、小型停车场、体育场的压实，是公路、市政部门对修建公路、街道广场的理想设备。

ZLR20S Walk-behind Vibatory Pavement Roller has the features of small size, compact structure, easily transport, high work load endurance, high efficiency,etc. It’s ideal to work together with large scale pavement roller to conduct projects such as road base, road surface, asphalt surface pedestrian,well cover edges, road edges, small scale pavement projects, as well as amend of ditches on the road surfaces, parking lot,stadiums ground surface pavement. It is an ideal choice for highway construction and municipal departments in conducting roads, streets, and squares constructions.
