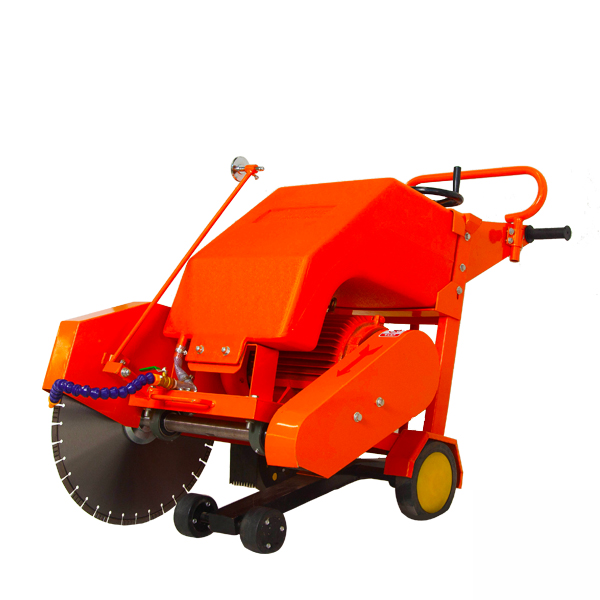

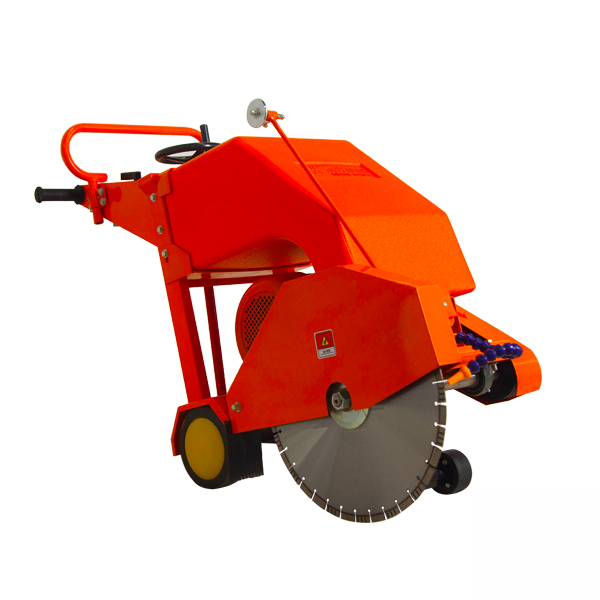

HQS500B混凝土路面切缝机主要技术参数

HQS500B Concrete Pavement Joint-cutting Machine Technical Parameter



项目/型号Item/Model	HQS500B
发动机型号/Engine model	Y132M-4
发动机功率/Engine power	7．5Kw
额定电压/Rated Voltage	380V
发动机转速 Engine rotaional speed	1440r/min
切割深度/Cutting depth	160mm
锯片直径 Saw  blade diameter	φ500mm
主轴转速 Spindle Rotating Speed	1700r/min
最大线速度 Max linear speed	44m/s
水箱容积 Water tank capacity	47L
外形尺寸/Dimensions	1300×990×620mm
出口包装尺寸（木箱） 包装尺寸（木箱出口型） Package Size(wooden box for export)
整机重量/The Whole Weight	160±5kg



HQS500B型混凝土路面切缝机是配用金刚石锯片切割混凝土楼板、混凝土路面、沥青石子路面、水磨石、花岗岩等硬质材料的理想切割设备，适用于建筑工程、予制板厂、石材加工厂等单位。该机采用功率7.5千瓦电动机作为动力源，塑料水箱永不生锈，电机外露散热效果好，整机结构紧凑，体积小，移动方便。

HQS500B Concrete PavEMENT Joint-cutting Machine is used with diamond saw blade to cut concrete floor, the concrete pavement, the asphalt gravel road surface, the terrazzo, the granite and other flinty material, which is suitable for the architectural engineering, plank factroy, stone material processing factory, the stucture is compact, samll size volume, easy to move.
